1023-26

Type: 1023-26

Color:

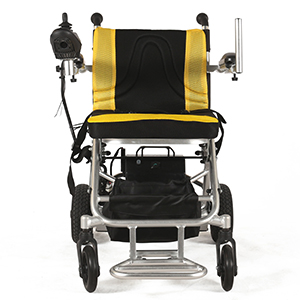

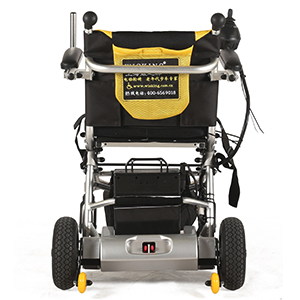

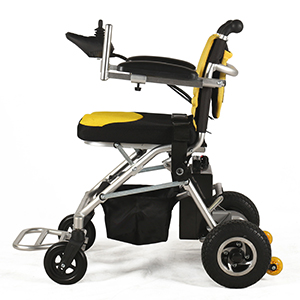

Mini size ,light weight ,comfortable electric power wheelchair

With 6 inch front wheel and 9 inch rear wheel.

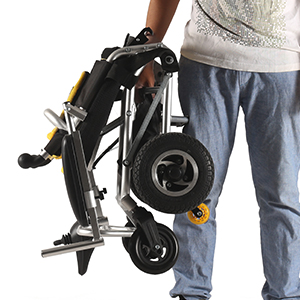

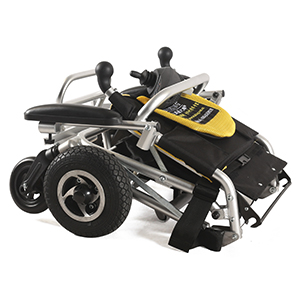

5Seconds disassembly , battery can move home for charging

Total weight is 19.5kg without the lithium battery.

Footrest can be flip up.

Seat and backrest cushion can be easily remove for cleaning.

Controllers can be interchanged with right and left side.

With the meth bag under the seat.

Specification

  • Length

    88cm

  • Width

    59cm

  • Height

    86cm

  • Weight capacity

    85kg

  • Wheels

    Front:6”solid tire Rear:9”air tire

  • Incline capability

    8-15 degrees

  • Max.forward speed

    9km/h

  • Range

    up to 20km per battery charge

  • Controller

    PG(Imported from UK)

  • Motor

    24V/200W*2(Imported from Taiwan)

  • Charger

    24V/2A

  • Battery

    12V/16AH lithium

  • suspention

    Front:without Rear:without

  • Recharge time

    6-8hrs

  • Seat depth

    40cm

  • Seat width

    42cm

  • Seat height

    50cm

  • Net weight(with batteries)

    24.5kg

  • Net weight(without batteries)

    19.5kg

  • Battery dimension

    1ctn

  • Packge

    80*40*60cm
