Wisking 1023-16

Type: 1023-16

Color:

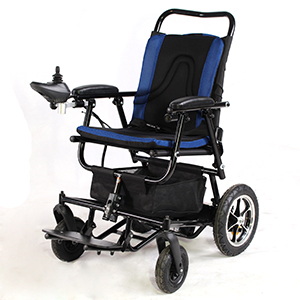

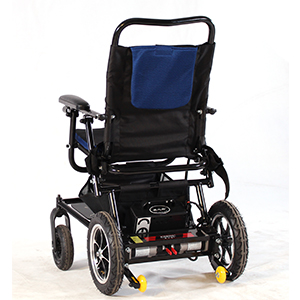

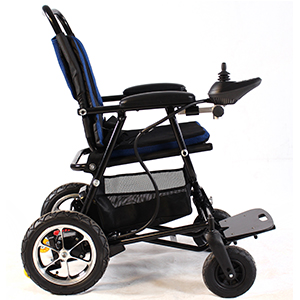

Mini size ,light weight ,comfortable electric power wheelchair

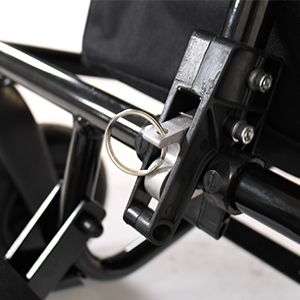

5 seconds disassembly,battery can move home for charging.

Total weight is 20kg without the battery.

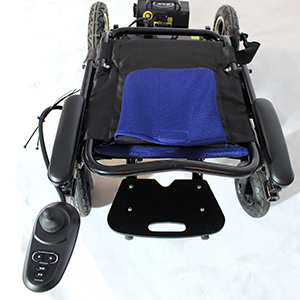

Seat and backrest cushion can be easily remove for cleaning.

Controllers can be interchanged with right and left side.

Specification

  • Length

    97cm

  • Width

    57cm

  • Height

    96cm

  • Weight capacity

    85kg

  • Wheels

    Front:8”air tire Rear:12”air tire

  • Incline capability

    12 degrees

  • Max.forward speed

    8km/h

  • Range

    up to 15km per battery charge

  • Controller

    PG(Imported from UK)

  • Motor

    24V/200W*2(Imported from Taiwan)

  • Charger

    24V/2A

  • Battery

    12V/14AH*2

  • suspention

    Front:without Rear:without

  • Recharge time

    6-8hrs

  • Seat depth

    40cm

  • Seat width

    42cm

  • Seat height

    50cm

  • Net weight(with batteries)

    30kg

  • Net weight(without batteries)

    20kg

  • Battery dimension

    15.1*9.8*9.8cm*2

  • Packge

    1ctn
