Wisking 1020 Joger

Type: 1020

Color:

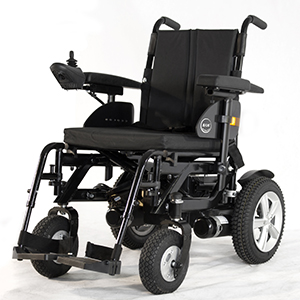

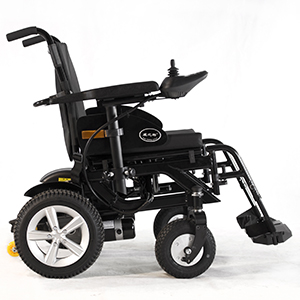

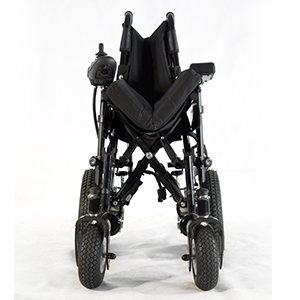

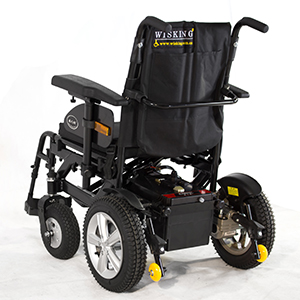

Modern design comfortable electric power wheelchair

Armrest can be flip up. Footrest can be lift adjustable.

Conector-free drop-in battery pack, battery can move home for charging.

Controllers can be interchanged with right and left side.

14 inch rear wheels with 10km/h speed.

Specification

  • Length

    110cm

  • Width

    62cm

  • Height

    93cm

  • Weight capacity

    100kg

  • Wheels

    Front:8”air tire Rear:12”air tire(Front:9”air tire Rear:14”air tire can be optional)

  • Incline capability

    12 degrees

  • Max.forward speed

    8-10km/h

  • Range

    up to 30km per battery charge

  • Controller

    PG(Imported from UK)

  • Motor

    24V/320W*2(Imported from Taiwan)

  • Charger

    24V/5A

  • Battery

    12V/35AH*2

  • suspention

    Front:optional Rear:without

  • Recharge time

    6-8hrs

  • Seat depth

    40 or 45cm

  • Seat width

    45cm

  • Seat height

    49cm

  • Net weight(with batteries)

    63kg

  • Net weight(without batteries)

    41kg

  • Battery dimension

    19.5*13*18cm*2

  • Packge

    2ctns
